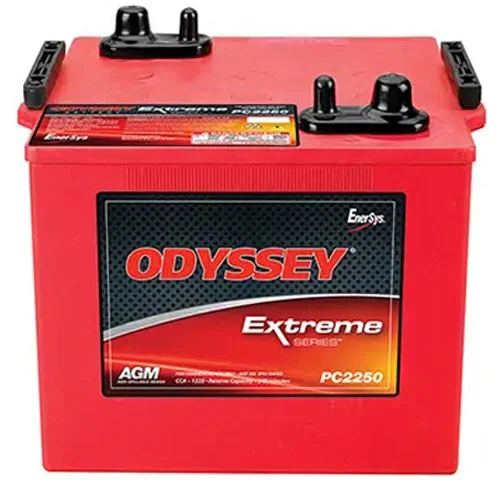

EnglishOdyssey Ods-AGM6M 12V / 126A Deep Cycle AGM Battery
Odyssey Ods-AGM6M 12V / 126A Deep Cycle AGM Battery is an energy storage with superior features. This battery delivers powerful performance with its 12V voltage. PHCA This battery, which can reach up to 2250A in 5 seconds, is ideal for meeting instant energy needs. At the same time, it provides a reliable start in cold weather conditions with its 1225A CCA value.
This AGM battery, whose internal resistance is kept low at 2.1 mΩ, can produce up to 5000A power in short circuit situations. Additionally, it provides long-term energy with its 126Ampere-hour C20 capacity and 114Ampere-hour C10 capacity. The RC (reserve capacity) value of 240 minutes highlights the battery's ability to provide a continuous and stable flow of energy.
Considering its dimensions and weight, it has a compact design with 287mm length, 269mm width and 234mm height. It provides ease of transportation and installation with its weight of 39kg. With an operating temperature range of -40°C to +45°C, this battery offers reliable performance even in harsh environmental conditions. Odyssey Ods-AGM6M is easy to install with SAE 3/8-16” terminal socket and 100 in-lbs (11 Nm) maximum torque. It can be mounted or stored in any orientation except upside down. Additionally, it has a storage life of 2 years without charging at 25°C and charging is recommended when OCV 12.2V (50% SOC).
With Charge and Self-Discharge features, this battery operates with an IUU charging curve, maintaining the charging voltage between 14.4V to 14.8V at 20°C. Monthly self-discharge rates are 1.25% at 20°C and 5% at 40°C. 400 cycles @ 80% D.O.D highlights the durability and longevity of this deep-discharge AGM battery.
Odyssey Ods-AGM6M 12V / 126A Deep Cycle AGM Battery Features:
Power and Performance:
- Voltage (V): 12
- PHCA 5 sec. (A): 2250
- CCA (A): 1225
- HCA (A): 1730
- MCA (A): 1550
- C20 (Ampere-hour): 126
- C10 (Ampere-hour): 114
- RC (Minute): 240
- Terminal Slot: SAE 3/8-16”
- Torque in-lbs (Nm max): 100 (11)
- Internal Resistance (mΩ): 2.1
- Short Circuit (A): 5000
Dimensions and Weight:
- Length (mm): 287
- Width (mm): 269
- Height (including terminals) (mm): 234
- Height (Container) (mm): 208
- Weight (kg): 39
Temperature Features:
- Operating temperature range (°C): -40°C/+45°C
- Optimal storage tempetature (°C): (+20°C)
Transportation and Storage
- Can be mounted or stored in any orientation except upside down
- 2 years storage life without recharging at 25°C
- Charge when OCV/12,2V (50% SOC).
Charge and Self-Discharge Features:
- Type of charging curve: IUU
- Charging voltage 14.4v to 14.v at 20°C
- Monthly self –discharge at 20°C 1.25%
- Monthly self – discharge at 40°C 5%
- 400 cycles @ 80% D.O.D
